In Stock!

*PLEASE NOTE*

This vehicle may be sold but on display to view and secure the next available vehicle. For availability or to arrange a viewing please call 01600 890870 and select option 1.

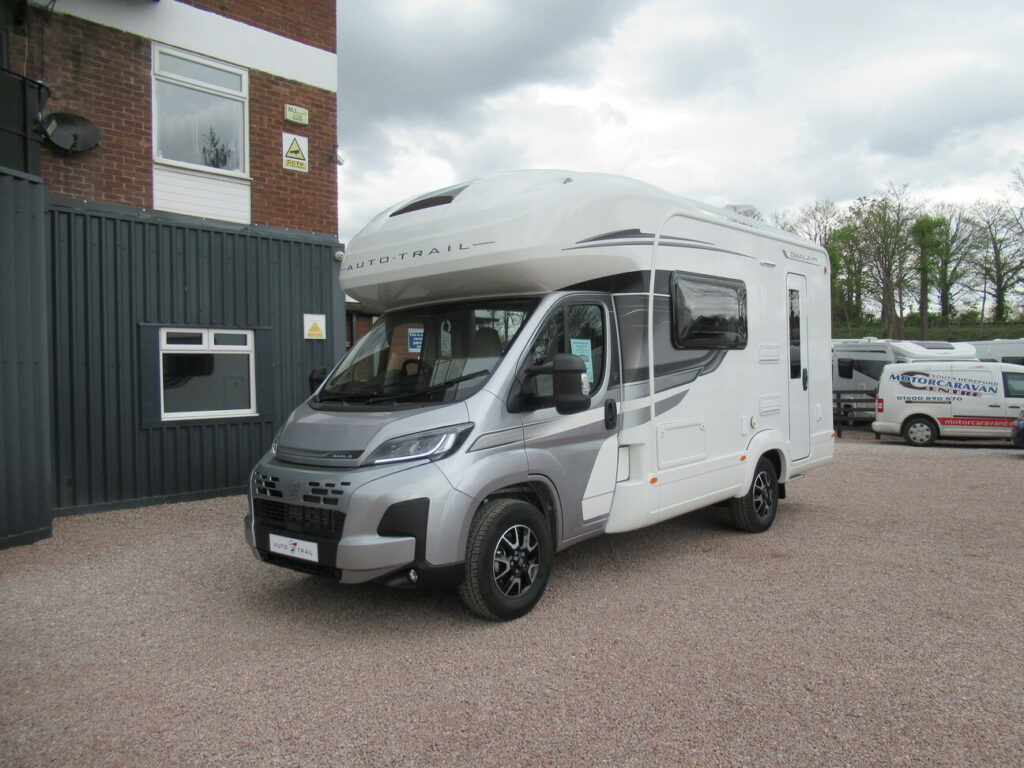

Auto-Trail Imala 615

6 Speed Manual – 2025 Model – Artense Grey

*Please note Full Vehicle Specification and pictures are for illustration only, actual vehicle specs may vary, please confirm with SHMCC*

SPECIAL OFFER

Was £75,800 – Now £74,372

Available for a limited time only, while stocks last. Part Exchange considered on all vehicles, cars, motorcycles, boats & property. You name it, we may take it!

This Auto-Trail motorhome provides 4 berth accommodation, with 4 belted seats (including drivers). With accommodation provided through a front lounge conversion and an over cab bed. While the kitchen benefits from a dual fuel hob, separate oven & grill, microwave, 3-way fridge/freezer and sink. Also, the bathroom has a separate shower washroom with shower, sink, vanity, and cassette toilet.

In conclusion, this motorhome has 240v mains electricity connection and Truma hot water and heating. Featuring pleated blinds and fly screens fitted to the opening habitation windows. Overall, this motorhome benefits from a solar panel, tv aerial and external storage access. For more features, please see below.

Overview

Discover the versatile charm of the Auto-Trail Imala 615 motorhome, an exceptional choice from the Imala range.
Whether in its hi-line variant for up to four people, or the lo-line option for two, this motorhome provides a spacious front lounge with comfortable bench seating, creating a warm and inviting atmosphere for entertaining and quality time together.
Experience the ultimate blend of comfort and functionality with the Auto-Trail Imala 615 motorhome, designed to elevate your travel adventures in style and convenience.



Body Styles

  • Hi-line coach-built with over cab sleeping area and skyline panoramic opening window



Engine & Chassis

  • Based on a Fiat Ducato (AL-KO) chassis
  • 140bhp MultiJet3, Euro 6D, 4-cylinder engine with a max torque 350nm @ 1400RPM
  • 6 Speed manual gearbox as standard
  • Available in Artense Grey



Weight & Dimensions

  • Weights:
    • Max authorised weight – 3500kg
    • Max gross train weight – 4750kg
    • MRO – Mass in running order -3020kg
    • Max front axle loading – 1850kg
    • Max rear axle loading – 2000kg
    • Max towing weight – 1250kg
  • Dimensions:
    • Overall length – 6.34m (20’9″)
    • Overall height – Hi-Line 3.16m (10’4″)
    • Overall width mirrors folded – 2.35m (7’7″)
    • Overall width mirrors unfolded – 2.77m (9’1″)
  • Wheel base – 3450mm
  • Tyres – 225/75 R16CP
  • Fresh water capacity – 135 litres
  • Waste water capacity – 85 litres
  • Fuel tank capacity – 60 litres
  • Gas bottle storage – 1x 6kg & 1x 13kg



Max Bed Measurements

  • With 4 Berths available through:
    • Front lounge conversion measuring at 2.17m x 1.86m (7’1″ x 6’1″)
    • Front lounge conversion as singles measuring at 2x 1.86m x 0.73m (6’1″ x 2’4″)
    • Upgraded to an over cab bed measuring at 1.89m x 1.18m (6’2″ x 3’9″)



Floor Coverings & Upholstery

  • 2x scatter cushions
  • Imogen luxury upholstery
  • Cushioned vinyl flooring
  • Removable bound-edged carpets



Kitchen Features

  • Flush fitting four ring hob (3x gas, 1x 800w electric)
  • Full oven, grill & pan store
  • 96 litre fridge with removable freezer compartment
  • Fully fitted 800w microwave
  • Cutlery storage
  • Inset sink with flush fitting cover



Washroom Features

  • Domestic style bathroom taps, shower head and controls
  • Fully enclosed seamless shower cubicle
  • Blown air heating outlets to washroom area
  • Large mirror
  • 12v electric flush toilet with removable cassette on wheels



Living Room Features

  • Easy access to bed boxes
  • Moyet Oak solid plywood interior furniture
  • Two tone upper locker doors with chrome insert
  • Pleated fly screens and blinds to all opening habitation windows
  • Free standing table
  • Metal rollerball drawer runners
  • On the move heating (monocontrol CS regulator with integrated crash sensor)



Cab Area Interior Features

  • Fully upholstered and height adjustable driver & passenger captain’s seats with twin armrests and swivel seat base
  • Bottle/cup holder and USB charging point
  • Air-con cooled water bottle storage
  • 2x Cab door speakers
  • Cab air conditioning
  • Multi-function trip computer
  • Pleated blinds to cab windows
  • Folding tablet/smart phone holder to dashboard
  • Upgraded to colour touchscreen DAB radio with Aux/USB/iPod connection and Bluetooth hands free system (included in media pack)
  • Upgraded to Pioneer 9″ DAB touchscreen radio with Apple Carplay/Android Auto (included in media pack)
  • Upgraded to steering wheel controls for radio (included in media pack)
  • Upgraded to colour reversing camera integrated into touchscreen head unit (included in media pack)
  • Upgraded to selectable rear camera view when driving forward (included in media pack)
  • Upgraded to 19.5″ Avtex smart tv (included in media pack)
  • Upgraded to tv aerial preparation (included in media pack)



Water & Gas

  • Fresh/waste water tank gauge
  • Pressurised water system



Electrical & Gas Features

  • Analogue control panel with the ability to monitor vehicle remotely
  • 12v Lighting
    • Ambient concealed LED over locker lighting
    • Under locker LED reading lights
  • 230v sockets
  • Engine & leisure battery condition indicator
  • Transformer/charger/RCD Unit
  • Combi 4KW Gas/230v heater/hot water, 12v blown air, including digital control panel
  • Auto-Trail ‘Connect’ – a Thatcham category 7 approved tracker (Subscription to be purchased through myautotrail.co.uk website)
  • Upgraded to omnidirectional aerial (included in media pack)
  • Upgraded to 12v/coaxial socket (included in media pack)



Insulation & Strength

  • Warranties (T&C’s Apply)
    • 5 Year warranty for conversion
    • 5 Year body construction integrity warranty
    • 2 Year warranty for Fiat chassis
  • Grade 3 insulation
  • Full vinyl underfloor protection
  • Laminated construction
    • Wall – full thickness 40mm
    • Floor – full thickness 45mm
    • Roof – full thickness 40mm



Exterior Style & Features

  • Gloss black front grille, lower skid plate and headlights
  • GRP Construction
    • High gloss aerodynamic over cab roof moulding
    • High gloss scratch/damage resistant side walls
  • 16″ Alloy wheels
  • Acrylic capped abs side skirts
  • Colour coded front bumper
  • Front & rear mud flaps
  • Integral moulded entrance step with removable mat
  • High security entrance door with blind, waste bin, fly screen and Auto-Trail umbrella with storage
  • Habitation door central locking
  • Electrically operated step
  • Adjustable, electrically operated heated exterior mirrors with blind spot mirror
  • Electrically operated cab windows
  • External gas BBQ point
  • Roof styling bars (not load bearing)



Storage & Access

  • Exterior storage / access locker



External Lighting

  • Daytime running lights (DRL’s) to headlamps
  • LED Lighting
    • Exterior awning light
    • Front marker lights
    • Rear marker lights
    • Side running lights
  • 3rd high level brake light



Power

  • 100AH leisure battery
  • 200w flexi solar panel



Visibility & Ventilation

  • Double glazed windows with pleated fly screens and blinds
  • Panoramic roof light
  • 12v 3-speed roof fan/ventilator



Safety

  • Cruise control with speed limiter
  • ABS braking
  • Disc brakes to front and rear
  • Central locking to Fiat cab
  • Fitted engine immobiliser
  • ECWVTA compliance to all relevant EU standards
  • National Caravan Council Approved
  • Flame failure shut-off valves to all gas appliances
  • Isolation taps to all gas appliances
  • Smoke alarm / C02 Alarm
  • Fire Extinguisher
  • Upgraded to lounge dinette with 2 forward facing 3-point belt system



Cost Option Extra’s

Factory fit

  • 180bhp MultiJet3, Euro 6D, 4-cylinder engine
  • 8 Speed automatic gearbox
  • 3.0m wind out awning
  • Truma roof air-conditioning
  • Second leisure battery and loom
  • Weight upgrade to 3650kg
  • Rear corner steadies
  • Fully approved tow bar and electrics
  • Motorhome Wi-Fi 5G Ready
  • Circular coffee table
  • Fitted – Lounge dinette lounge with 2 forward facing seatbelts
  • Double dinette lounge with 2 forward facing seatbelts
  • Fitted – Media Pack
    • New 19.5″ Avtex wide screen smart TV
    • New 9″ Pioneer touch screen dashboard head unit (featuring wireless Apple CarPlay, digital radio with integrated DAB tuner, Bluetooth hands-free system with integrated microphone, NEW selectable rear camera view when driving forwards)
    • Colour reversing camera
    • Steering wheel radio controls
    • TV aerial, 12v/co-axial socket included

After Market Equipment

  • Please review with your dealer for further information on after-market equipment for individual customisation.

Full Vehicle Specification may vary. Please Note pictures are for illustration only, actual vehicle specs may vary, please confirm with SHMCC.

All Prices quoted include any Manufacturer or SHMCC promotions.

All Purchases and Orders are subject to our Terms and Conditions which can be found on our website.

Please Note we are operating an appointment system.
